Mineral exploration drilling tests what lies below the surface and provides the data needed to assess whether mineralisation could support a mine.
The central role of drilling in mineral exploration
Drilling sits at the centre of mineral exploration. While surface sampling, mapping, and geophysical surveys provide important clues, drilling supplies the only direct physical evidence of geology beneath the ground.
For investors and industry observers, drilling results often drive the most immediate market reactions. Drill results appear frequently in company announcements and are closely watched because they reduce uncertainty about what exists below the surface.
However, drilling does not confirm that a mine will be built. It provides geological data that informs decisions about whether further work is justified, what form that work should take, and how much risk remains.
The necessity of exploration drilling
Most mineral deposits occur below the surface and cannot be assessed through observation alone. Soil sampling and geophysical surveys identify anomalies, but they do not confirm mineral grades, thickness, or continuity.
Exploration drilling allows companies to physically intersect rock at depth and examine it directly. This process helps explorers test geological ideas rather than rely on indirect indicators.
Drilling typically aims to:
- Confirm the presence of mineralisation.
- Measure grades and thicknesses.
- Identify geological structures and controls.
- Test whether mineralisation continues between locations.
Without drilling, companies cannot define resources, estimate size, or understand the geometry of a potential deposit.
How exploration drilling works
Exploration drilling involves drilling narrow holes into the ground using specialised rigs, often mounted on trucks or tracks. Although the holes are relatively small in diameter, they can extend hundreds or even thousands of metres below the surface.
Drill hole locations are selected based on geological interpretation. Geologists use existing data to predict where mineralisation may occur, then design drill programs to test those predictions.
As drilling progresses, samples are collected and logged by geologists. Logging involves recording rock types, mineral content, alteration, and structural features. Samples are then sent to independent laboratories for chemical analysis.
The results from these analyses form the basis of reported drilling results.
Comparing common exploration drilling methods
Explorers use different drilling methods depending on project stage, geology, depth, and budget.
The most common methods include:
- Aircore drilling, which is relatively low cost and suited to shallow exploration and early stage target testing.
- Reverse circulation drilling, which produces rock chips and is commonly used for broader coverage and initial resource definition.
- Diamond drilling, which recovers intact core and provides detailed geological information.
Projects often use a combination of methods as they progress. In next week’s article, we’ll take a closer look at these methods, the use cases for each, and what they mean for investors.
Key data revealed by drilling
Drilling provides information that surface work cannot supply.
Key outputs from drilling include:
- Mineral grades across specific intervals.
- Thickness and depth of mineralised zones.
- Rock types and alteration patterns.
- Structural features such as faults, folds, and veins.

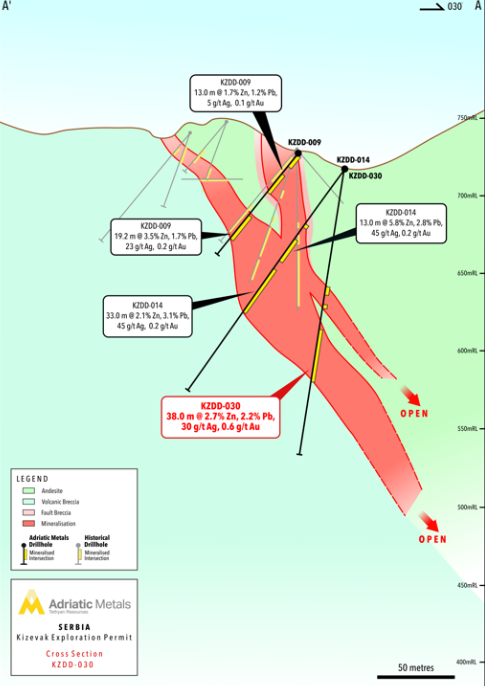

As drilling data accumulates, geologists build three-dimensional models that show how mineralisation extends in multiple directions. These models guide future drilling and help assess whether mineralisation is continuous enough to support a resource estimate.
How to interpret mineral exploration drill results
Drilling results are commonly reported as grades over specific lengths, such as metres drilled.
These figures describe what the drill intersected, not what will ultimately be mined. Context is critical.
Important factors to consider include:
- Whether grades occur consistently across multiple holes.
- How results compare with surrounding drilling.
- The depth and orientation of mineralisation.
- The geological setting and structural complexity.
A single high-grade intersection does not define a deposit. Confidence builds only when multiple drill holes demonstrate continuity across an area.
Managing cost and exploration risk in drilling programs
Drilling is expensive and outcomes are uncertain. Many drill programs fail to intersect economic mineralisation, even when geological indicators had appeared favourable.
Exploration risk decreases as drilling density increases, but costs rise accordingly. Early-stage programs often test broad concepts, while later-stage programs focus on infill drilling to improve confidence.
Funding constraints influence how much drilling a company can undertake and how quickly it progresses. This explains why explorers often drill in phases rather than committing to large programs upfront.
What investors should look for in drilling announcements
According to Russell Eley Chief Geologist at MDF Global and Technical Director Mineral-Eyes:
“One thing to check is whether long, high-grade intercepts are in fact just a short high-grade intercepts that have been averaged over a wider thickness to make them look more amenable to economic mining.
For example, a 2m intercept through a narrow high-grade vein containing 10% Cu, within a 100m thick zone consistently containing just 0.2% Cu, will average 0.56% Cu over that 100m – making it look like a more attractive intercept from a mining perspective, when in reality, 98m would be sub-economic waste material.
On the flip side, as a geologist, I pay close attention to narrow high-grade intercepts because sometimes they can be a vector to nearby economic mineralization. A great example of this is the narrow high-grade, ‘high-sulphidation’ veins in walls of the Escondida open pit mine in Chile that lead down to the super-giant Escondida Este discovery that had been hiding deep below the pit.”
Drilling and the path to mineral resource definition (JORC Code)
As drilling results accumulate, companies may move towards defining a mineral resource.
Resource definition requires sufficient drilling density to support geological confidence and comply with reporting standards such as the JORC Code. The goal is to demonstrate that mineralisation is continuous and predictable enough to estimate size and grade.
At this stage, drilling shifts from discovery-focused to confirmation-focused. Programs become more systematic, and spacing between drill holes decreases.
Even then, a defined resource does not guarantee development. Drilling reduces geological uncertainty but does not eliminate technical, economic, or regulatory risks.
Why it matters
Drilling underpins nearly every major exploration and development decision.
For investors, understanding drilling helps clarify:
- Why results are often incremental rather than decisive.
- Why some programs attract follow-up drilling while others stop.
- Why negative results can halt projects quickly.
Drilling data provides the foundation for resource estimates, development studies, and project valuation.
The bottom line: Drilling’s role in a project’s future
Mineral exploration drilling supplies the critical information needed to understand what lies beneath the surface. It confirms mineralisation, defines geology, and reduces uncertainty.
While drilling alone does not guarantee a mine, it remains the most important tool explorers use to assess whether a project has the potential to progress through the mining lifecycle.
