Mineral explorers use different drilling methods to balance cost, speed, and data quality at various stages of a project.
Exploration drilling explained
Drilling provides the primary source of information about geology below the surface, but not all drilling is the same. Exploration companies select drilling methods based on project stage, depth, geology, and budget.
Understanding the main drilling methods helps investors and industry observers interpret exploration results more accurately. The choice of drilling technique often signals how advanced a project is and what type of information a company is seeking.
The most commonly used methods in mineral exploration are aircore drilling, reverse circulation drilling, and diamond drilling.
The role of drilling in mineral discovery
Each drilling method involves trade-offs. Faster and cheaper techniques collect less detailed information, while slower and more expensive methods provide higher-quality geological data.
Explorers typically begin with lower-cost methods to test concepts across large areas. As confidence increases, they transition to methods that deliver more detailed information.
Using the right drilling method at the right stage helps manage cost, reduce risk, and improve decision-making.

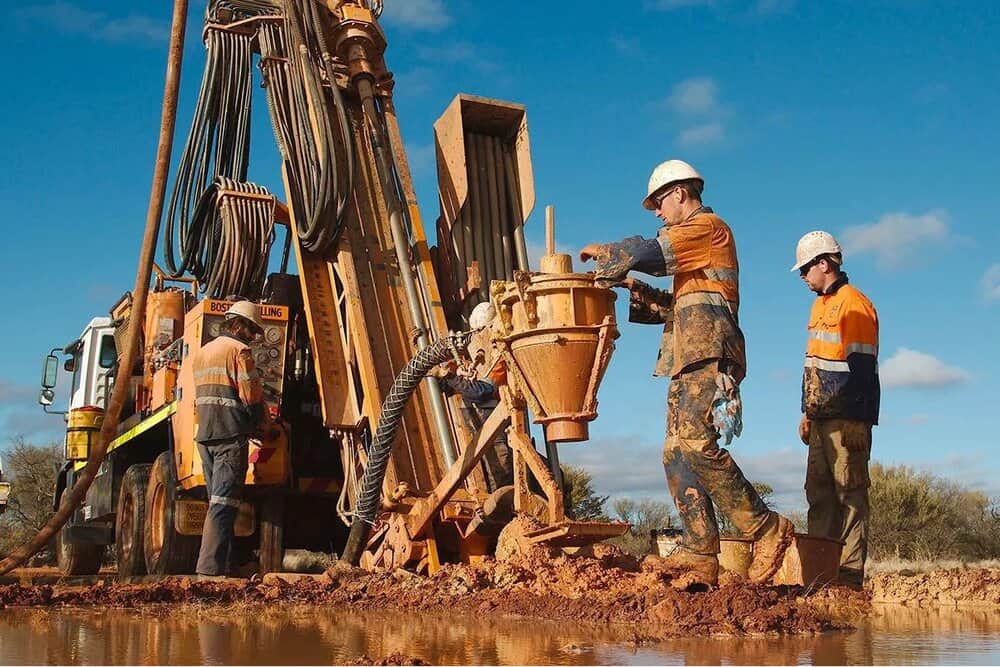

Aircore drilling: Low-cost shallow exploration
Aircore drilling is widely used in early-stage exploration, particularly for shallow targets and regional programs.
This method uses compressed air to bring rock chips to the surface through the drill rods. Aircore drilling is relatively fast and cost-effective, making it suitable for testing large areas.
Aircore drilling is commonly used to:
- Test soil or geochemical anomalies.
- Identify shallow mineralisation.
- Screen targets before deeper drilling.
Because aircore drilling recovers small rock fragments rather than intact samples, geological detail is limited. It is less suitable for deeper drilling or complex geology.
Despite these limitations, aircore drilling plays an important role in narrowing exploration focus and identifying priority targets.
Reverse circulation (RC) drilling for resource definition
Reverse circulation drilling, often referred to as RC drilling, is one of the most commonly used methods in mineral exploration.
RC drilling uses compressed air to bring rock chips up an inner tube inside the drill rods, reducing contamination and improving sample quality compared with aircore drilling.
RC drilling is typically used to:
- Test mineralisation at moderate depths.
- Provide broader coverage across a project area.
- Support early-stage resource definition.
RC drilling offers a balance between cost and data quality. It is faster and cheaper than diamond drilling but provides more reliable samples than aircore drilling.
However, reverse circulation drilling does not recover intact rock. This limits its ability to provide detailed structural or geological information, particularly in complex settings.

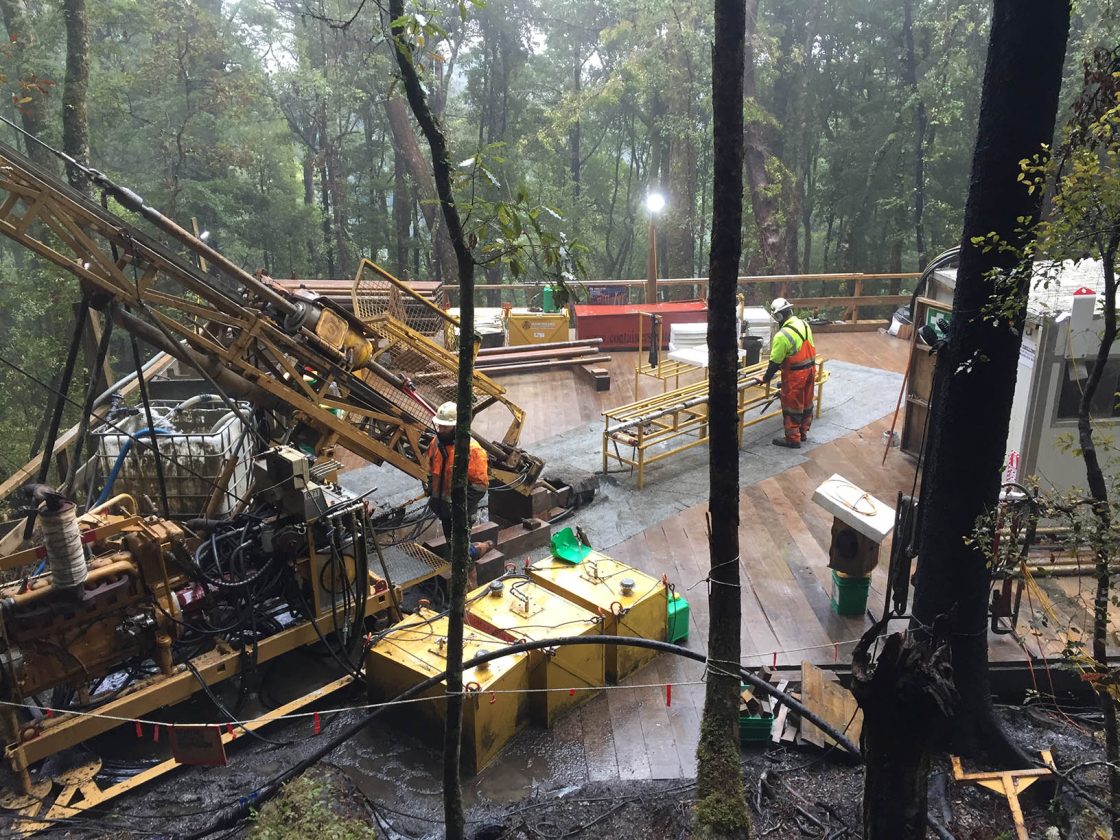

Diamond drilling: High-fidelity data for feasibility
Diamond drilling delivers the highest-quality geological information available in mineral exploration.

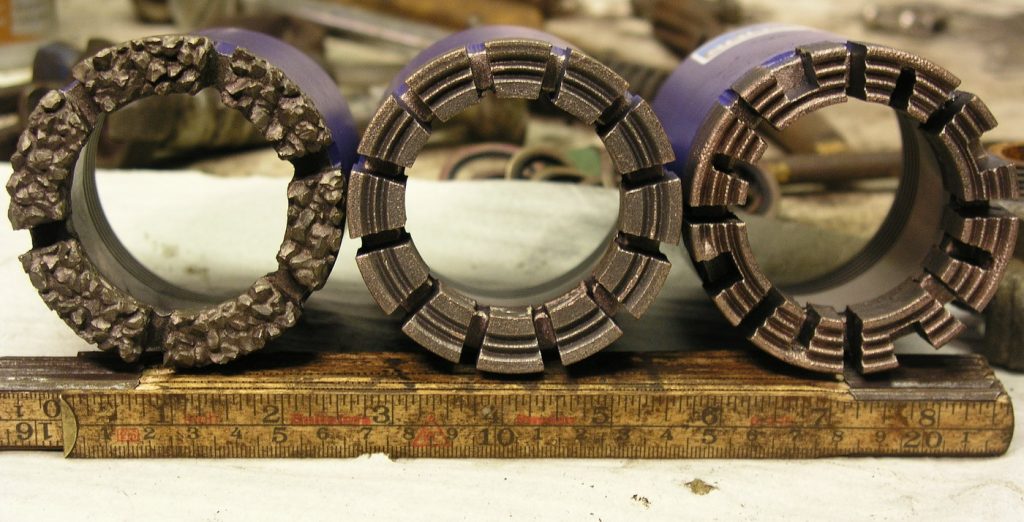

This method uses a diamond-impregnated drill bit to cut a cylindrical core of rock, which is brought to the surface intact. The core preserves rock textures, structures, and mineral relationships.
Diamond drilling is used to:
- Confirm geological interpretations.
- Define mineral resources with higher confidence.
- Support feasibility and development studies.
Because diamond drilling provides a continuous core, geologists can observe features such as veining, faulting, and alteration in detail. This information is critical for understanding complex deposits and planning mine design.
Diamond drilling is slower and more expensive than other methods, so companies usually reserve it for advanced projects or targeted follow-up work.
Matching drilling techniques to the mining lifecycle
The drilling method a company uses often indicates where a project sits in the mining lifecycle.
Early stage projects typically rely on aircore drilling to identify targets. As mineralisation is confirmed, companies shift to reverse circulation drilling to test continuity and scale.
Advanced projects increasingly depend on diamond drilling to improve confidence, refine geological models, and support resource and reserve estimates.
Most projects use a combination of methods over time, rather than relying on a single technique.
When planning an exploration program, how do you decide when a project is ready to graduate from cost-effective aircore drilling to more expensive reverse circulation (RC) or diamond drilling?
According to Russ Eley Chief Geologist at MDF Global and Technical Director Mineral-Eyes:
“This varies from deposit to deposit, and on the questions you want the drilling to answer. For example, for shallow Bauxite deposits with simple predictable geology, you can probably get all the information you need just with aircore drilling, while for Porphyry Copper deposits that have more complex geology and mineralization, its best to start with diamond drilling, then over time, as your understanding of the deposit improves, you can consider transitioning to lower-cost RC drilling.”
JORC confidence: Sample quality by drilling method
Sample quality varies significantly between drilling methods.
Aircore drilling provides limited geological detail but is sufficient for identifying anomalous mineralisation. Reverse circulation drilling delivers more consistent samples and supports grade estimation, but it lacks structural detail.
Diamond drilling produces the most reliable geological data and underpins higher-confidence resource estimates.
Understanding these differences helps explain why results from different drilling methods carry different levels of confidence.
Drilling depth and technical limits
Each drilling method has practical depth limitations.
Aircore drilling is generally restricted to shallow depths. Reverse circulation drilling can reach greater depths but becomes less effective in certain ground conditions.
Diamond drilling can reach significant depths and handle complex geology, but cost and time increase as depth increases.
Explorers consider these constraints when designing drilling programs and selecting methods.
Exploration risk and budgeting for drill programs
Drilling represents one of the largest expenses for exploration companies.
Lower-cost methods allow companies to test more targets with limited budgets. Higher-cost methods reduce uncertainty but require stronger funding positions.
This cost dynamic explains why drilling programs are often staged. Companies gather information incrementally and adjust programs based on results and funding availability.
Why it matters
Drilling methods influence the quality and reliability of exploration data.
For investors, understanding drilling techniques helps clarify:
- Why early results may be described as preliminary.
- Why some results trigger follow-up drilling.
- Why advanced projects emphasise diamond drilling.
Drilling method choice provides insight into project maturity, risk, and future work requirements.
Conclusion
Aircore, reverse circulation, and diamond drilling each serve distinct roles in mineral exploration. Explorers select methods based on cost, depth, geological complexity, and project stage.
Understanding how these drilling methods differ helps place exploration results in context and supports more informed assessment of mining projects as they progress through the lifecycle.
In our next article, we’ll discuss how drill results are reported and interpreted, to help you understand what they mean for your investments.
